Alatas Service | Workshop Repairs |
Location | DUBAI Maritime City, UAE, Middle East |
Equipment Type | Deck Crane |
Cranes | Liebherr |
Alatas Middle East was contracted to attend to a client’s vessel upon its arrival at DUBAI Maritime City due to a dismantled luffing cylinder. Moreover, the team also carried out the refurbishment, followed by an operation and leak tests.
ALATAS SOLUTION
- Refurbishment of hydraulic cylinder with new seal kit
FULL WORK SCOPE
- Dismantled hydraulic cylinder in our workshop
- Carried out inspection
- Replaced damaged seals
- Assembled cylinder back with a new seal set
- Carried out a Function test
- Carried out a Leak test
REFURBISHMENT OF LUFFING HYDRAULIC CYLINDER GALLERY

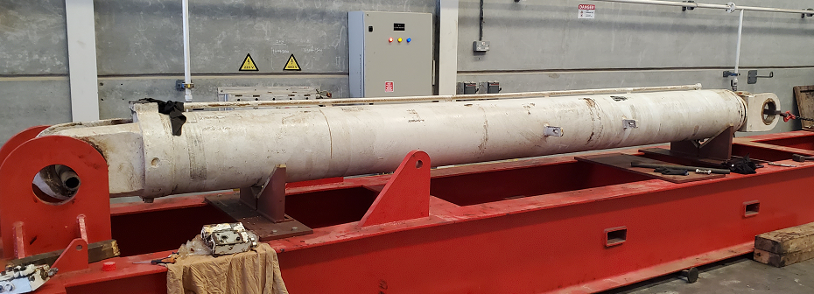

Dismantling of hydraulic cylinder





Assembly of hydraulic cylinder



Testing of cylinder



Retract the Cylinder 5 times; Pressure during 30 bar
Operating the cylinder to the full extracted position and holding the pressure 350 bar
Operating the cylinder to the full retracted position and holding the pressure400bar
