In this job, our experts at Alatas Singapore demonstrated their multi-disciplinary offshore vessel services after successfully supervising the removal of old and damaged claw couplings onboard a customer’s VLCC. At the Western Anchorage in Singapore, this job required inspections, machining, installation, and testing to repair a Nippon Pusnes P-19ACU windlass.
Job Scope
- Alatas Singapore mobilised to vessel and held a meeting on board with the captain and chief engineer to discuss the job scope of the supervision of replacing the claw coupling at the port side windlass.
- Alatas Singapore also carried out a toolbox talk and risk assessment, met with the superintendent to discuss the procedures for removing the winch to replace craw coupling before performing a visual inspection of the anchor winch.
- Alatas Singapore removed the entire winch and both couplings by pulling out hollow jacks and then removed the shaft keys and set screws which the team then brought to Alatas Singapore’s workshop for fabrication.
- Measurements were taken of both shaft diameters for machining new coupling.
- Alatas Singapore installed both new couplings to the winch before putting back the whole winch in place. In addition to this, they performed alignment for both shaft and couplings. Finally, Alatas Singapore adjusted the coupling gap and filled up Chock-Fast after alignment.
- The team adjusted the claw coupling to 1.0 mm and was found to be OK.and tightened all foundation bolts using a Hytorque power tool.
Then testing on the functions of the windlass was tested, and observed the main shaft moving from side to side around 10 mm as the locking ring was worn out. - Alatas’ solution was to weld an additional spacer ring at the locking ring to stop shaft shifting side to side for temporary repair only. The team then tested this and the windlass was now working correctly.
- After removing the lifting frames and boxing up the gear casing cover, Alatas Singapore successfully tested the winch and windlass with a DNV surveyor. Then the team dropped anchor up to two shackles and tried several times, which was satisfactory.
If you require any of our offshore vessel services in Singapore or anywhere else, please Contact Us.
Singapore OffShore Vessel Services Gallery

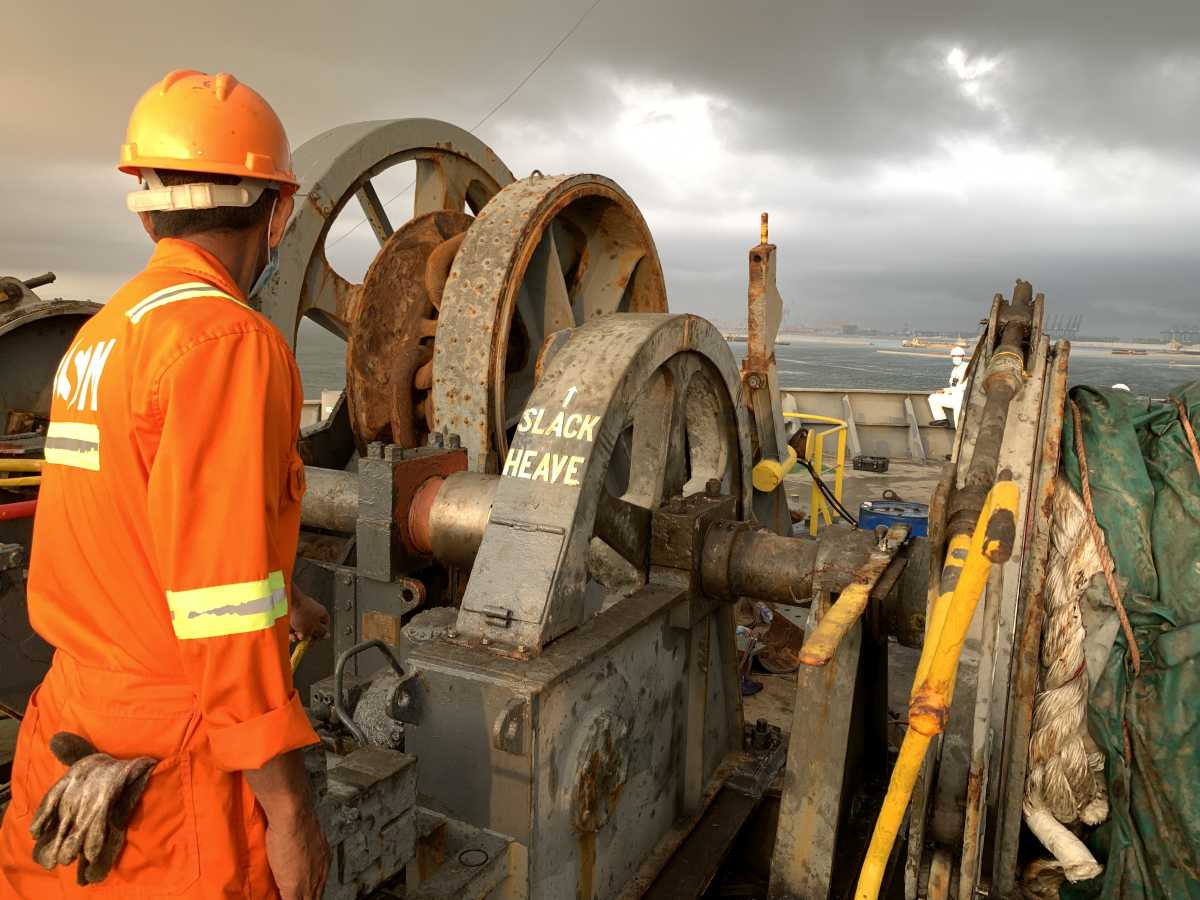

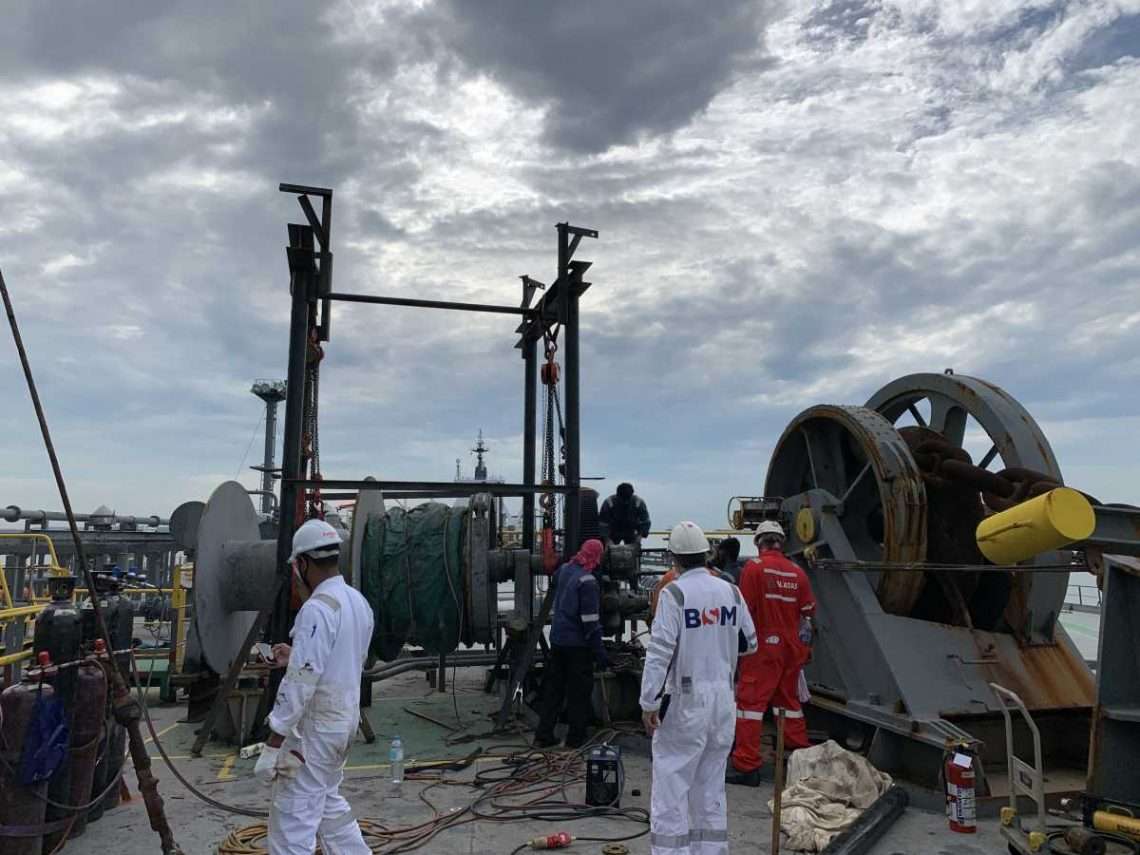

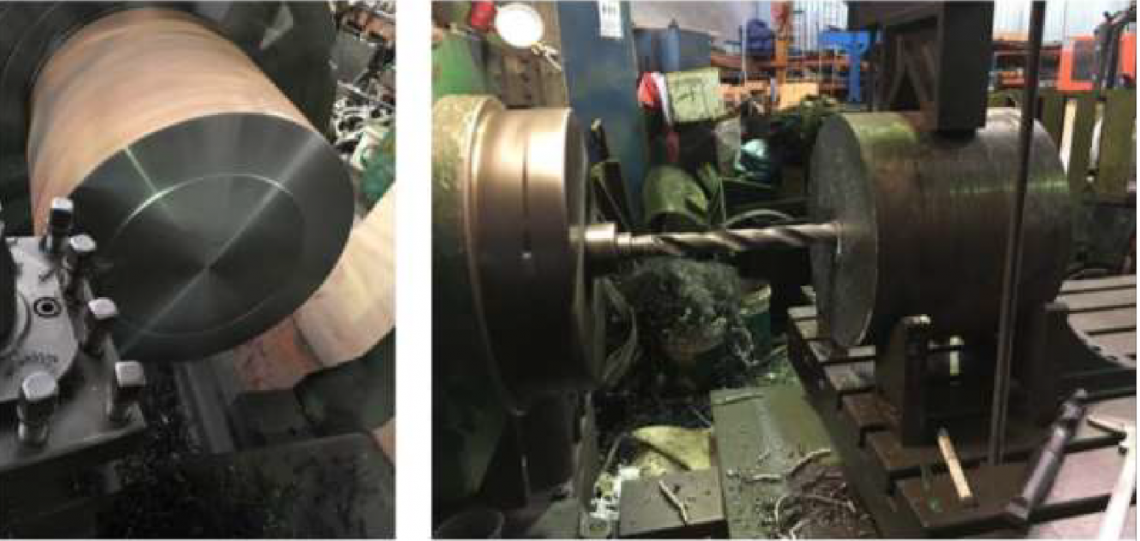

Portside windlass Schematic of windlass with couplings highlighted Corroded couplings found during inspections Lifting frame installed on deck Removal of coupling Faulty coupling removed from windlass Manufacturing of new couplings Singapore workshop [1] Manufacturing of new couplings Singapore workshop [2] Manufacturing of new couplings Singapore workshop [3] New couplings installed [2] New couplings installed [3] Welding of additional spacer ring New couplings installed [1] Installing winch Testing windless [1] Testing windlass [2]
