Alatas Service: Field Service
Region: Singapore
Manufacturer: Tsuji
Model: HSDHS 3528
| Alatas Service | Field Service |
| Region | Singapore |
| Manufacturer | Tsuji |
| Model | HSDHS 3528 |
Our team at Alatas Singapore took on this Tsuji HSDHS 3528 repairs project. This deck crane is equipped with SWL of 35t. x 28m boom.
While the crane was loading coal with motor grabs, the luffing winch experienced a catastrophic failure that caused the boom to free fall.

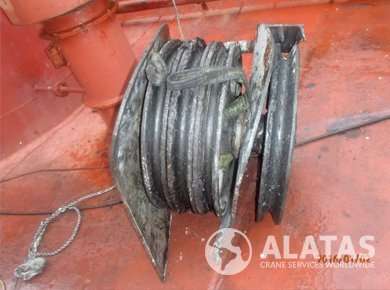

As well as severe damage to the crane jib, grab and ship’s structure, the rope sheave assembly at the top of the crane’s column became damaged, bent and distorted.
Alatas Solution
One of Alatas’ tasks was to design, fabricate and install a new rope sheave assembly, complete with brackets, consoles and new rope sheaves. The design work for the repairs was class approved and the entire repairs were carried out under class supervision.
Job Gallery for Tsuji HSDHS 3528 repairs
Start to remove sheave structure Removed sheave structure from slew column Removed sheave structure front slew column Alatas fabricated new sheave bracket Final load test
