| Alatas Service | Field Service |
| Location | Middle East |
| Crane Manufacturer | MacGregor |
| Crane Model | GL2524-2 |
Alatas Middle East was requested to undertake a MacGregor GL2524-2 slewing bearing change out.
An Alatas workforce mobilised quickly to minimise downtime. Once the vessel was secured in the port to carry out the job site assessment and the panning of the heavy lift.
Job scope for MacGregor GL2524-2 slewing bearing change out
- Mobilisation of personnel
- Mobilisation of one 200t and one 400t mobile crane
- Removal of slew gearboxes
- Disconnection of electric slip ring unit
- Hookup of the heavy-lift cranes
- Removal of slew bearing bolts
- Separation of the crane from its foundation
- Resting of the crane on the quayside
- Cleaning of slew bearing flange
- Flatness check of slew bearing flange
- Installation of crane and associated components
- Commissioning, testing and handing over to operation
Job Gallery

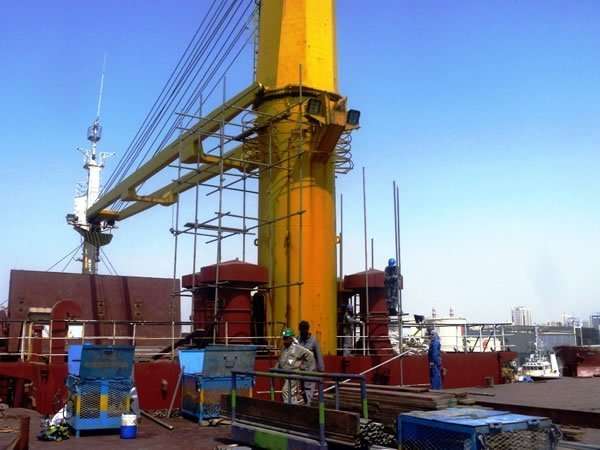

Vessel with MacGregor GL2524-2 cranes Scaffolding erection 2nd crane hooked up on crane house Rusty slew bearing ships spare Slew gearbox Lifting of ships crane Lifting of ships crane Pedestal flange flatness check Hydraulic testing tool Crane function test Slew gear backlash check Load testing
