KGW Luzhou CMS Upgrade

ALATAS’ SERVICESYSTEM UPGRADES
LOCATION  ASIA / JAPAN/ ONAHAMA PORT
EQUIPMENT  DECK CRANE KGW LUZHOU EH 3024-2

Intro

Alatas was instructed to perform a Control System Upgrade on 4 Deck cranes of maker KGW Luzhou

BACKGROUND

All 4 cranes were not operational and not serviceable due to malfunctions in the existing Control system

ALATAS’ SOLUTION

We installed our in-house designed Control system from Beckhoff after that and after a successful troubleshooting of the hydraulic components, all 4 cranes are fully operational and back in service.

Job Scope

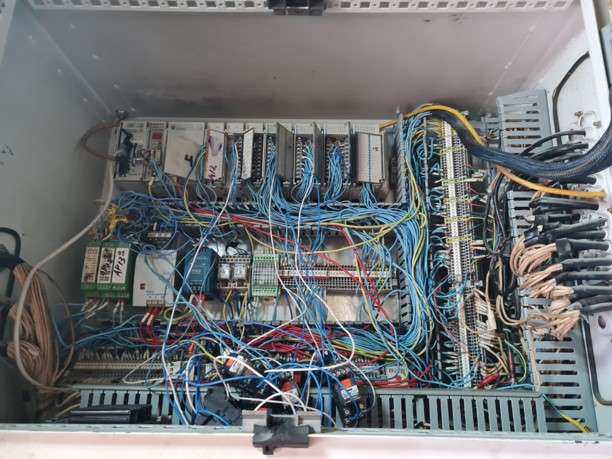

  • Removed old PLC, attached pump amplifier cards and HMI display
  • Installed new pressure transmitters and new Limit encoders for the hoist and luffing system
  • Arranged old switchboard wiring

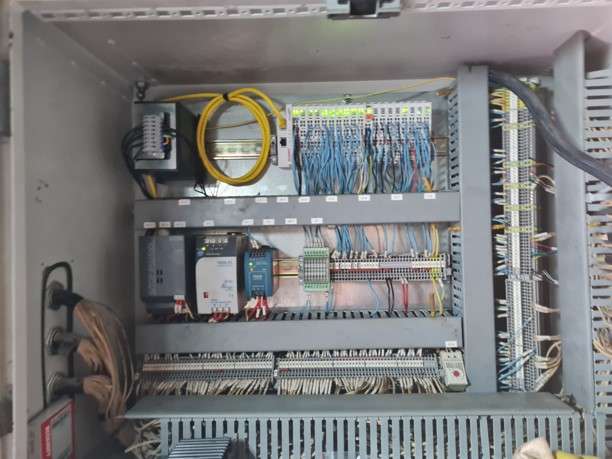

  • Installed new PLC and HMI
  • Wired new PLC
  • Re-Commissioned the cranes
